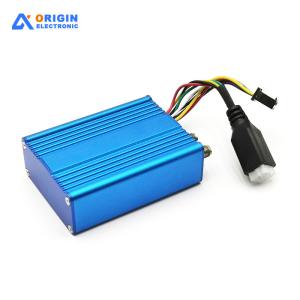

Fleet Management GPS Intelligent Vehicle Positioning System LY-MG12
Supports multiple peripheral connections
Aluminum alloy construction, fireproof and explosion-proof
Live vehicle location monitoring
Customizable monitoring intervals
Platform-controlled fuel/power disconnection capability
Triggers when vehicle voltage drops below 10V
Notifies when voltage falls below 5V
Supports overspeed, tamper, vibration, and emergency alerts
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| No. | Item | Specifications |
|---|---|---|
| 1 | Operating Voltage | DC 9-36V |
| 2 | Operating Current | 35~45mA@12V (25mA@12V in standby) |
| 3 | Dimensions | L74mm*W55mm*H24mm |
| 4 | Weight | Approx. 300g (complete set) |
| 5 | Positioning System | BeiDou Navigation |
| 6 | Positioning Accuracy | <10m (accuracy may vary depending on terrain and time factors) |
| 7 | Network | 4G |
| 8 | Protocol | TCP/UDP |
| 9 | Operating Temperature | -25℃~+75℃ |
| 10 | Storage Temperature | -40℃~+85℃ |
| 11 | Backup Battery | 2-3 hours runtime (3.7V 180mAh Li-ion battery) |
* Specifications are for reference only. Please refer to product manual for exact values.
